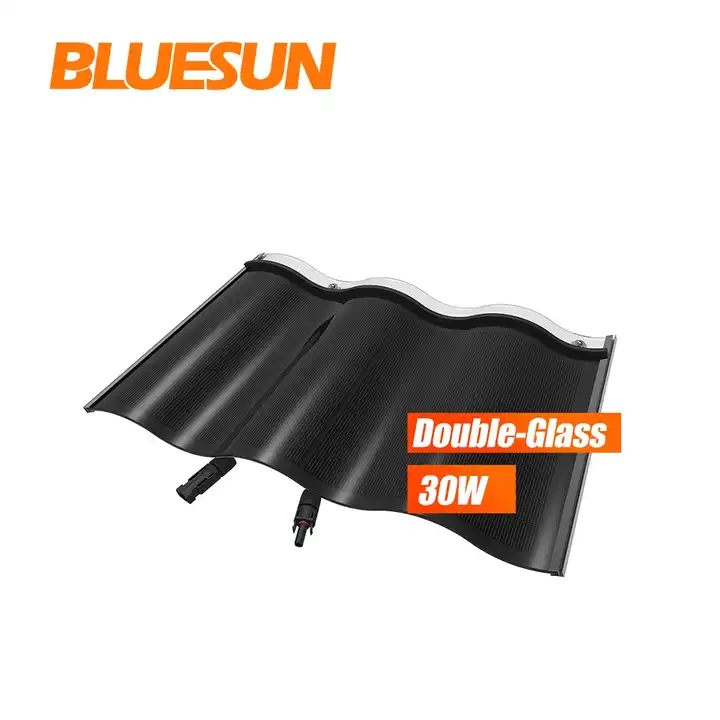

Solar Panel Roof Tiles 30W Double Glass Solar Tiles For Home Use Clean Energy Solar Panels Roof Construction

Product Description

Products Description
Double-Glass Roof solar tile series
Environmentally friendly building materials
Thin-film solar tile applications

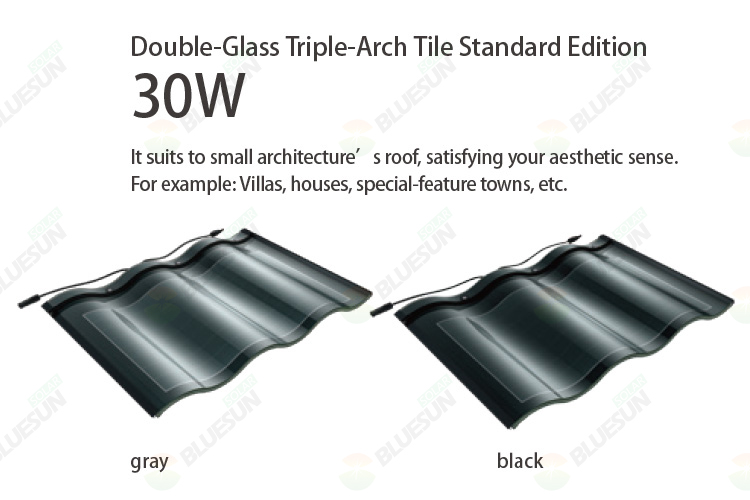

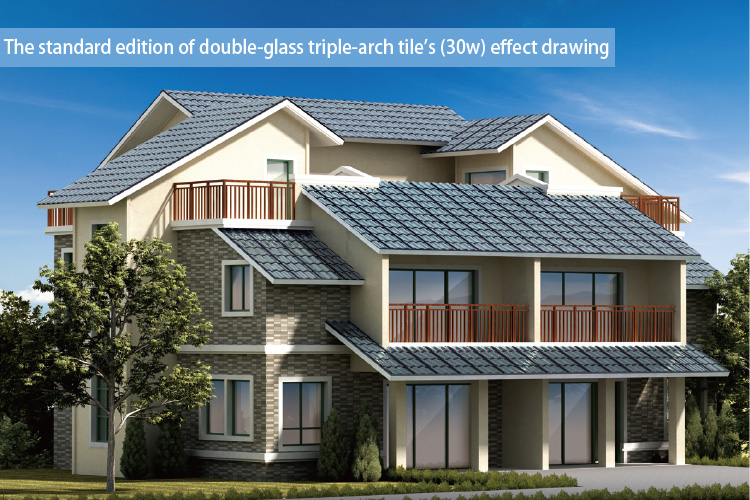

🔷 Double-Glass Roof solar tile series

It is gleaming and with graceful curve, inheriting the beauty of GLAZE. Thin-film solar core technology will lead the fashion.

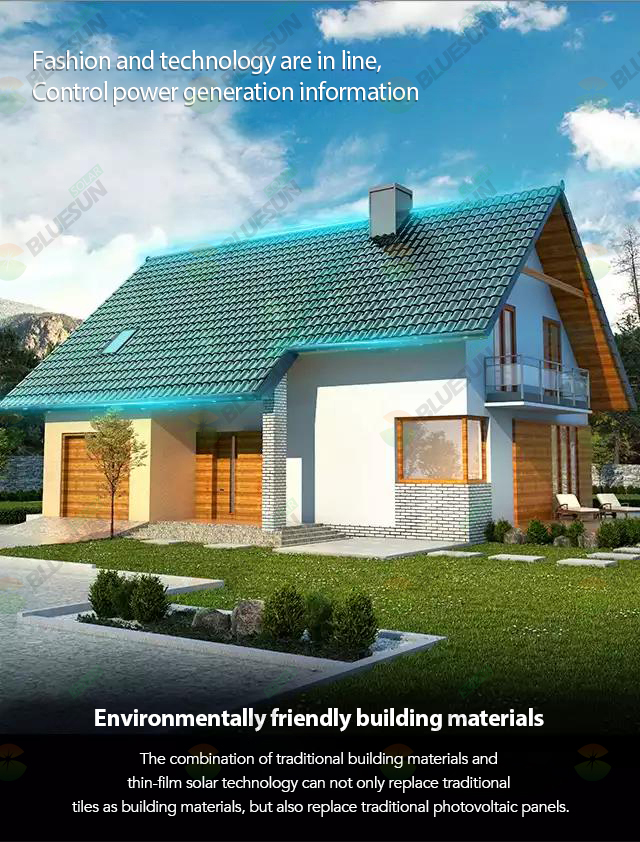

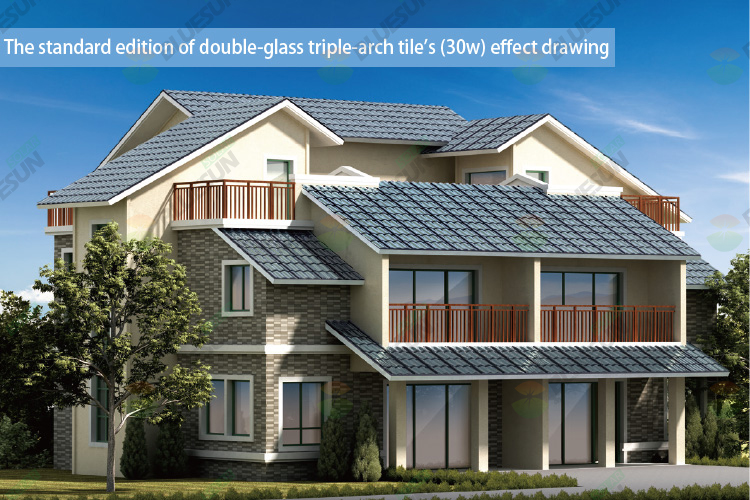

🍀 Environmentally friendly building materials

The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.

Technical Specifications

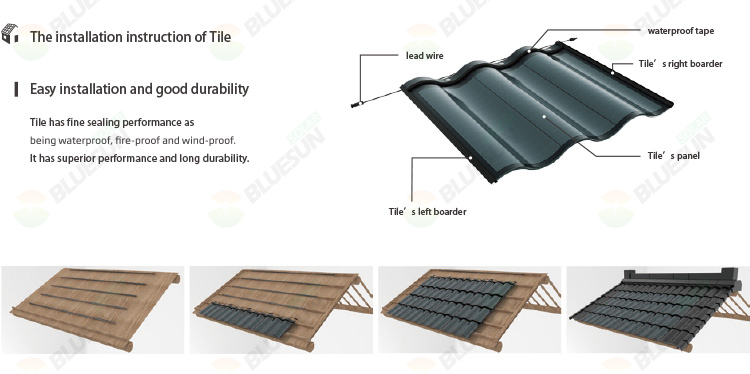

Technical Specifications Diagram
Specification Details (Model: BSM-30D)
Physical Parameters
Product Model BSM-30D
Length 500mm
Width 718mm
Arch Height 41mm
Weight 10KG

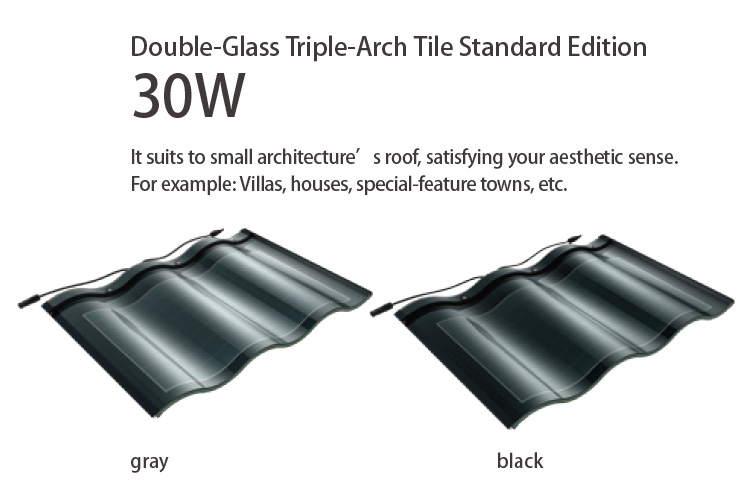

Color Black, Gray
Junction Box 39*46*16.6 (mm) IP67
Cable Type 2.5mm solar cable 450 (+10/-0) mm
Cable Connector PV connector
Electrical Parameters
Chip Type CIGS
Power 30W
Short-Circuit Current 4A
Open-Circuit Voltage 10.6V
Current at PMPP 3.5A
Voltage at PMPP 8.6V
Safety & Durability
Loading Grade 2400Pa
Waterproof Grade IP67
Fire-Proof Grade A
Hail-Proof Grade Level 4 (ANSI FM 4473)
Working Temperature -40°C to +85°C

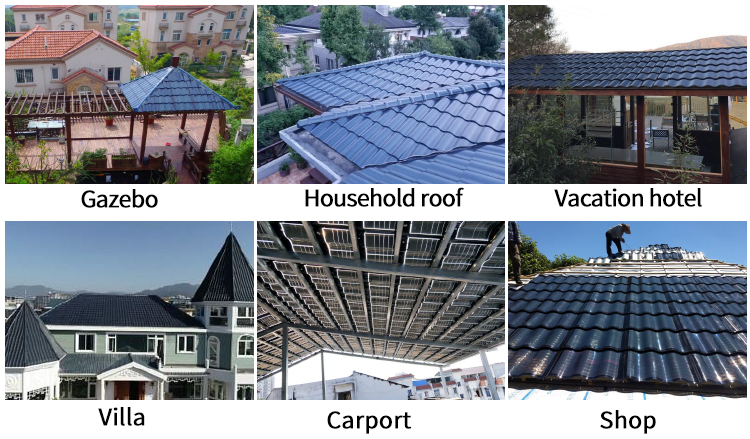

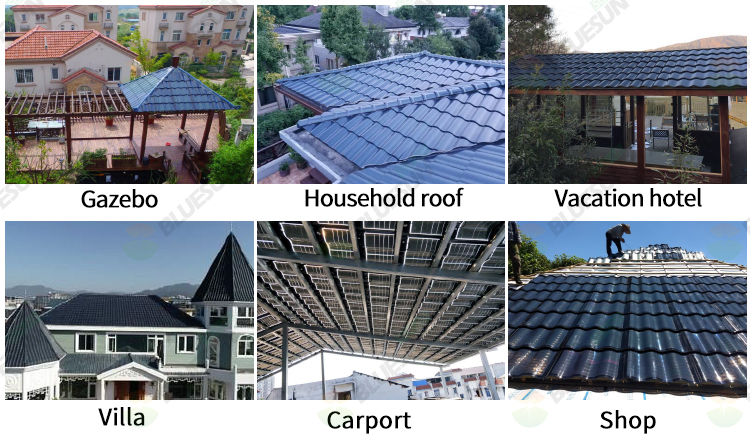

Applications
Solar Tiles Applications
Shipping Options
🚢 By Sea Delivery from Shanghai or Ningbo seaport
✈️ By Air Departure from Shanghai Pudong Airport
📦 By Express By TNT/DHL
Packing & Delivery

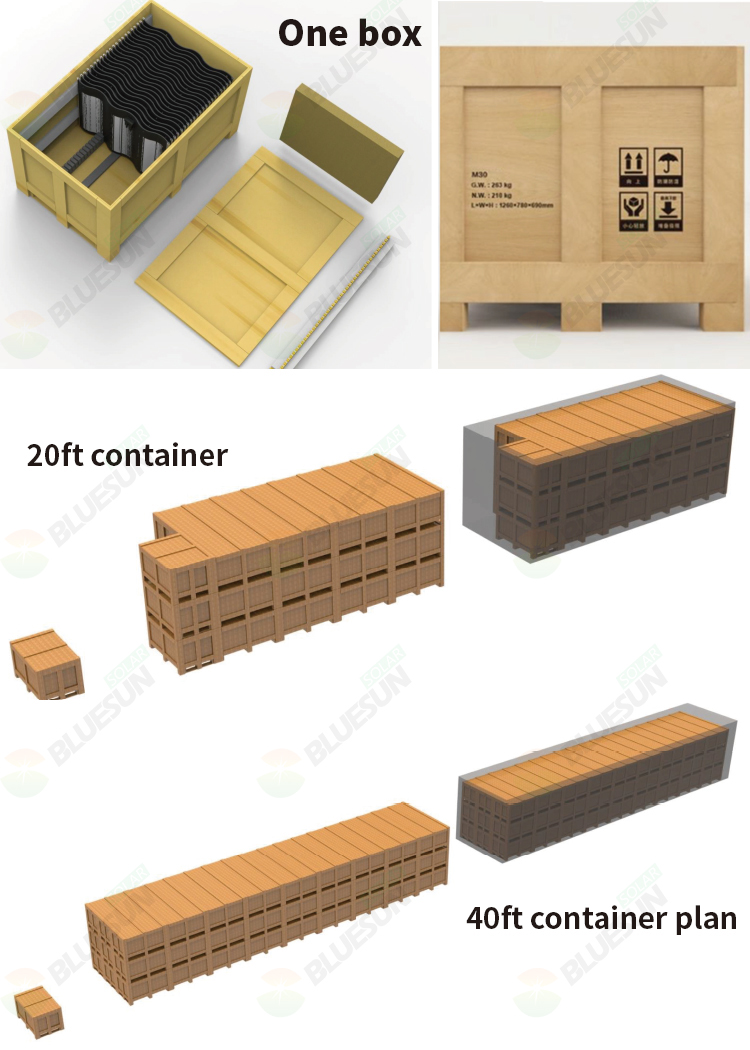

Packing Box Details
Loading Quantity Specifications
Box Specifications
Unit Packing Specification (mm) Gross Weight (kg) Net Weight (kg) Number per Carton (pcs)
One Box 1260*780*690 263 210 40
Container Loading Capacity
Container Type Loading Quantity (CTN) Loading Quantity (PCS) Total Weight (T) Volume (m³)
20ft Container 39 1560 10.3 27.6
40ft Container 81 3240 21.5 54
Frequently Asked Questions
❓ What is the power output and technology behind these solar tiles?
The solar tiles feature advanced CIGS thin-film solar core technology with a rated power output of 30W per tile (Model BSM-30D).
❓ Are these solar tiles durable enough to withstand extreme weather conditions?
Yes, they are highly durable. They have a wind load capacity of 2400Pa, an IP67 waterproof rating, a Class A fire-proof rating, and Level 4 hail-proof certification (ANSI FM 4473).
❓ What is the operating temperature range for the tiles?
These solar tiles are designed to operate efficiently under extreme weather conditions ranging from -40°C up to +85°C.
❓ Can these tiles replace traditional roof tiles completely?
Yes, the double-glass solar tiles act as a direct replacement for traditional building tiles and roof coverings, serving both as structural building materials and power generators.
❓ How are the solar tiles packaged for shipping?
They are securely packaged in boxes measuring 1260*780*690 mm, with each carton holding 40 pieces. One standard box weighs approximately 263 kg gross.
❓ How many solar tiles can fit in a standard shipping container?
A 20ft container can hold up to 39 cartons (1,560 pieces), while a 40ft container can accommodate up to 81 cartons (3,240 pieces).
